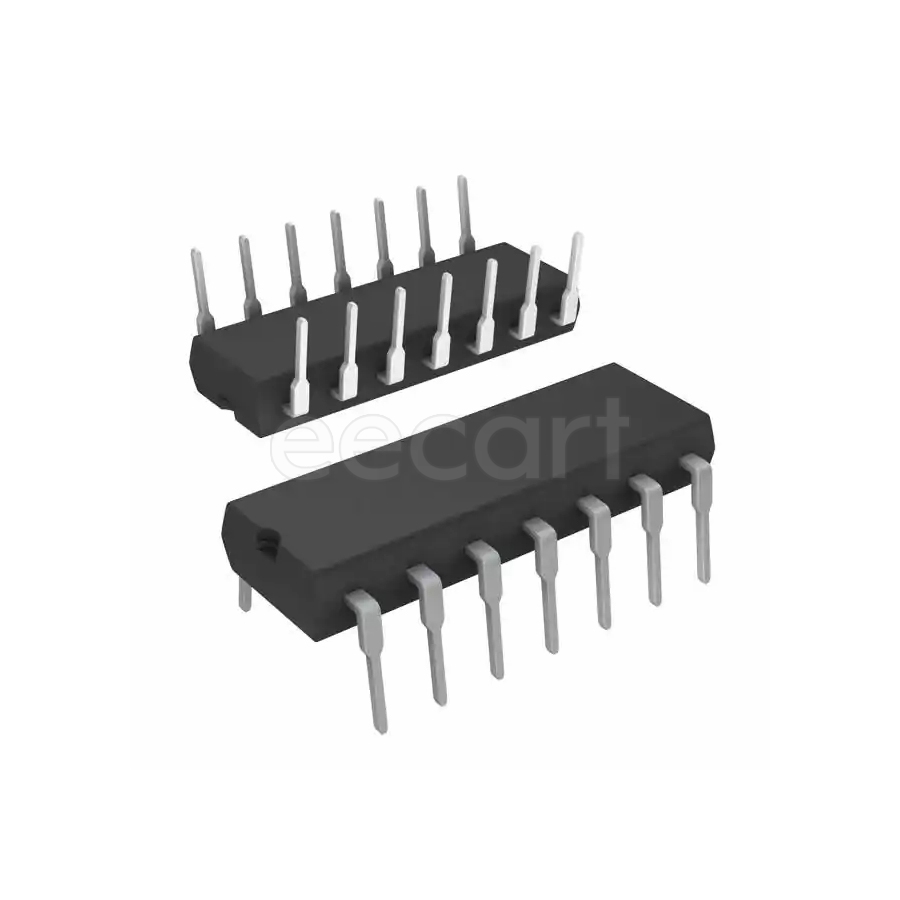

SN74LS164N
Manufacturer:
Texas Instruments
Mfr.Part #:
SN74LS164N
Datasheet:
Description:
Shift Registers PDIP-14 Through Hole Push-Pull Number of Bits per Element:8
| Parameter | Value |
|---|---|
| Length | 19.3 mm |
| Width | 6.35 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 14 |
| Height | 5.08 mm |
| Thickness | 3.9 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Frequency | 36 MHz |
| Number of Elements | 1 |
| Number of Circuits | 2 |
| Operating Supply Voltage | 5 V |
| Lifecycle Status | Active |
| Max Supply Voltage | 5.25 V |
| Min Supply Voltage | 4.75 V |
| Number of Bits | 8 |
| Turn-On Delay Time | 36 ns |
| Operating Supply Current | 100 µA |
| Propagation Delay | 36 ns |
| Logic Function | Shift Register |
| Number of Bits per Element | 8 |
| Direction(Counting Sequence) | Unidirectional |
| Nominal Supply Current | 100 µA |
| Input Current | 100 µA |
| Number of Output Lines | 3 |
| RoHS | Compliant |
| Packaging | Tube |
| Function | Serial to Parallel |
| Output Type | Push-Pull |
| Logic Type | Shift Register |
Stock: 260
Distributors
pcbx
pcbxUnit Price$0.54459
Ext.Price$0.54459
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.54459 | $0.54459 |
| 10 | $0.40010 | $4.00100 |
| 25 | $0.36249 | $9.06225 |
| 50 | $0.34136 | $17.06800 |
| 100 | $0.32146 | $32.14600 |
| 300 | $0.30523 | $91.56900 |
| 500 | $0.28982 | $144.91000 |
| 1000 | $0.27443 | $274.43000 |
| 3000 | $0.26707 | $801.21000 |
| 5000 | $0.25990 | $1299.50000 |
